150 Meters Depth Ground Drilling Equipment Large Diesel Power For Water Borehole

Il sig. Zhu è opportuno essere la fiducia, ha un buon gruppo, ci forniscono il buon servizio ed il cavo affidabile di qualità.

—— Aaron

Il sig. Zhu ci fornisce l'impianto di perforazione della trivellazione dell'acqua il buon prezzo. grazie.

—— Julien

Sono ora online in chat

150 Meters Depth Ground Drilling Equipment Large Diesel Power For Water Borehole

150 Meters Depth Ground Drilling Equipment Large Diesel Power For Water Borehole

Grande immagine :  150 Meters Depth Ground Drilling Equipment Large Diesel Power For Water Borehole

Dettagli:
Luogo di origine: Cina
Marca: JINZHOU SHITAN
Certificazione: ISO/CE/COC
Numero di modello: ST-200
Termini di pagamento e spedizione:
Quantità di ordine minimo: 1 set
Prezzo: Negoziabile
Imballaggi particolari: Pacchetto di esportazione standard
Tempi di consegna: 7-10 giorni
Termini di pagamento: T/T, Unione Occidentale
Capacità di alimentazione: 2000 set all'anno
Descrizione di prodotto dettagliata
Nome del prodotto: Perforatrici per pozzi d'acqua profonda Numero di modello: St 200
Profondità di perforazione: 200 metri Tipo di macchina: Impianto di perforazione del pozzi d'acqua
Pompa di fango: BW 250 Compressore d'aria: 23/29
diametro del foro: 100-300 millimetri Asta di perforazione: 89/76mm
Motore diesel: Marca Yuchai, marca Xidong, Yunnei Garanzia: 12 mesi
Servizio post vendita: Supporto video Colore: Giallo, rosso e blu
Evidenziare:

DTH hard rock drilling rig 180 meters

,

deep well drilling rig 300mm borehole

,

pneumatic drilling rig for hard rock

150 Meters Depth Ground Drilling Equipment Large Diesel Power For Water Borehole
DTH Hard Rock Layer Ground Drilling Equipment
This 180m water well drilling rig stands out from ordinary models by perfectly balancing high efficiency and long-lasting durability. It outperforms shallow rigs significantly while saving more energy than 200m over-depth units. Featuring a powerful pneumatic-diesel system for hard rock drilling and wheel-mounted mobility for easy deployment in remote off-grid areas.
Main Specifications
Attribute Specification Remarks
Machine Type Wheel-Mounted Pneumatic Water Borehole Drilling Rig Professional-grade, wheel-mounted for easy mobility
Drilling Depth Max 200 Meters Suitable for deep aquifers, irrigation & water supply projects
Hole Diameter Customized (90-300mm) Adapts to different well construction requirements
Drive System High-performance Pneumatic Drive Stable operation in complex geological formations
Rotation Torque 7500Nm / 4200Nm / 983Nm (Multi-specification Optional) Large torque to handle hard rock formations efficiently
Air Consumption 16-30 M³/min / 20-100m³/min (Dual-specification Optional) Flexible matching with different air compressor models
Power Source Diesel Suitable for off-grid and remote construction sites
Rotary Speed 0-90rpm (Adjustable) Precise control for drilling in different geological layers
Key Features
  • Ideal for irrigation, rural water wells, hydrogeological exploration and small mining operations
  • Excellent performance in areas with variable terrain and limited infrastructure
  • Complete wheel-mounted pneumatic system for immediate deployment
  • Professional guidance and support included
Packing & Shipping
  • Product shipped within 3-7 business days after order confirmation
  • Shipping cost calculated based on delivery address
  • Delivery time varies depending on destination
  • Tracking information provided once product is shipped
This is not just a drilling machine—it's a long-term asset for contractors, agricultural cooperatives, and water authorities aiming to reduce operational costs, accelerate project timelines, and deliver consistent results in the world's most demanding drilling environments.
Product Images

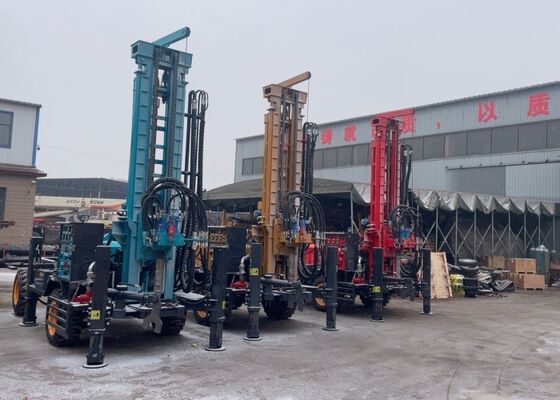

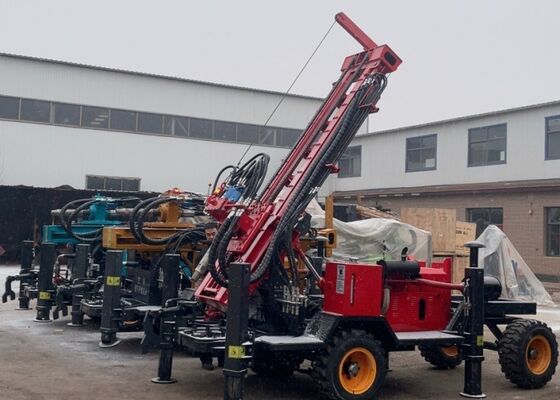

150 Meters Depth Ground Drilling Equipment Large Diesel Power For Water Borehole 0 150 Meters Depth Ground Drilling Equipment Large Diesel Power For Water Borehole 1 150 Meters Depth Ground Drilling Equipment Large Diesel Power For Water Borehole 2 150 Meters Depth Ground Drilling Equipment Large Diesel Power For Water Borehole 3 150 Meters Depth Ground Drilling Equipment Large Diesel Power For Water Borehole 4 150 Meters Depth Ground Drilling Equipment Large Diesel Power For Water Borehole 5 150 Meters Depth Ground Drilling Equipment Large Diesel Power For Water Borehole 6
